Spur Gears

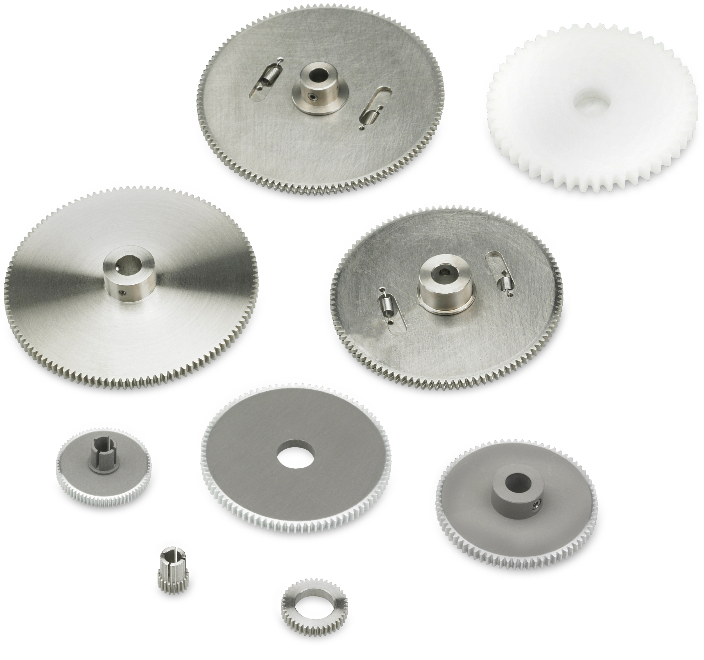

PIC Design offers a wide range of precision Spur Gears in both metric and inch sizes. Spur gears are designed for power and motion transmission between parallel shafts and are commonly used in precision positioning systems, encoders, optical systems, robotics, medical equipment and industrial controls.

PIC offers both standard catalog gears and custom manufactured gears, including modified bores, materials, finishes and special geometries.

Main Features:

• Precision: AGMA Q10–Q14
• Pressure Angle: 20°
• Metric: Module 0.25–1.5
• Metric Bores: 3–10 mm
• Inch: 16–120 DP
• Pitch Diameter: 0.1"–5"
• Inch Bores: 1/8"–3/8"
• Face Width: 1/8"–3/8"
• Materials: 303 Stainless Steel, 2024 Aluminum, Bronze Alloy 464, Acetal and 17-4 PH Stainless Steel

Hub Styles:

• Pin Hub – G Series: Pin connection to the shaft
• Split Hub – H Series: Slotted hub for clamp mounting
• Hubless – J Series: Precision bore for press-fit or mounting to a hub / cluster gear

PIC Design Spur Gears
