Straight Bevel Gear

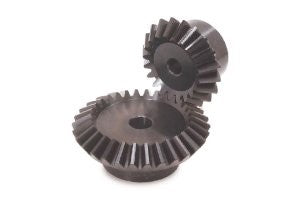

A straight bevel gear, also known as a bevel or miter gear, transfers motion and torque between non-parallel axes. Its cone-shaped design enables efficient rotational force transmission between intersecting gears.

These gears find diverse applications, including 90-degree motion, differential drives, and transferring torques and speeds between axes. KHK offers standard bevel gear ratios up to 1:5 to suit specific needs.

Miter gears are a subtype of straight bevel gears with axes intersecting at a 90-degree angle and a 1:1 gear ratio. They excel at right-angle power transmission and are commonly used in power tools and automotive differentials.

Straight bevel gears have teeth parallel to the gear axis and transmit lower speeds and torques compared to helical bevel gears. They come in Standard and Gleason configurations, with Gleason gears offering improved tooth contact and load distribution.

When integrating a bevel gear system, careful bearing selection is crucial to withstand axial and radial forces. Choosing the right bearings ensures the reliable and efficient performance of the gear system.

Type

Catalog

Number

Module

Gear Ratio

Material

Heat

Treatment

Tooth

Surface

Finish

Precision

JIS B 1704: 1978

Secondary Operations

Features

Straight Bevel Gears

SB / SBY

1 - 8

1.5 - 5

S45C

-

Cut

3

Possible

Many lineups are available at a low price. The teeth can be additionally hardened.

SUB

1.5 - 3

1.5 - 3

SUS303

-

Cut

3

Possible

Stainless steel gears with rust resistance.

PB

1 - 3

1.5 - 3

MC901

-

Cut

4

Possible

Nylon gears can be used with no lubrication.

DB

0.5 - 1

2

Duracon (R) (M90-44) NOTE 2

-

Injection Molded

6

Partly possible

Low-priced gears made through injection molding. Suitable for light loads.



Link to KHK bevels gears:

https://khkgears.net/new/bevel_gears.html
